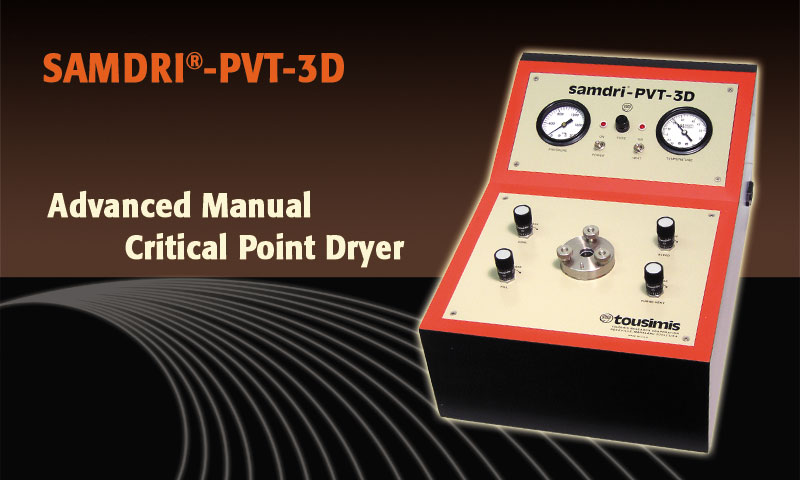

Samdri®-PVT-3D

  • The Manual Critical Point Dryer with advanced auto-pressure and temperature control
  • 1.25" ID chamber and 1.25" height
tousimis catalog# 8755B
  Download Brochure (PDF)
  Operational Demo Video
  Active Image for CPD and Accessories
The SAMDRI®-PVT-3D provides high precision results using manual controls. The four Micro-Metering Valves are conveniently located on top of this critical point dryer for ease of operator control. Automatic safety controls are standard features incorporated within the SAMDRI®-PVT-3D.
Features
  • Compact, lightweight tabletop size with small footprint.
  • Precise flow control for INLET, COOL, PURGE, VENT, and BLEED micro metering valves.
  • Vernier handles on all metering valves allow for reproducible settings.
  • Internal surfaces inert to LCO2 and ultra-pure alcohols.
  • Integrated automatic temperature control.
  • Static pressure control module for automatic pressure stability.
  • EZ top loading process chamber.
  • Internal filtration* protect samples and valves down to 0.5µm.
  • Tough, solvent resistant cabinet.
  • Under-lit chamber with viewing port aids visualization of chamber status.
  • Fast adiabatic chamber cooling* with CO2.
  • Advanced solid state reliable electronics.
  • All electronic and other components meet UL, CE and/or U.S. Military Specifications.

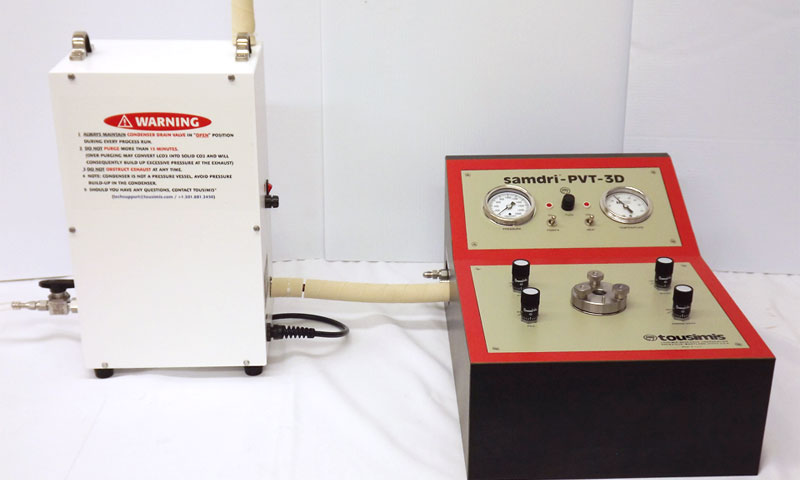

  • Optional SOTER™ Condenser* may be attached to capture waste alcohol and deaden PURGE exhaust noise.
Specifications
  • Cabinet: 12.75"(W)x 9.75"(H) x 18.50"(L) [32.4cm(W) x 24.8cm(H) x 47.0cm(L)]
  • System Set-Up Area Required: 20"(W) x 30"(D) [51cm(W) x 76cm(D)]
  • Chamber size: 1.25" I.D. x 1.25" Depth
  • Temperature gauge range: -30°C to 60°C, Pressure gauge range: 0 to 2,000 psi.
  • 120V / 50-60Hz (Other voltage units also available: Please inquire)
Standard Accessories
  • Flexible High-Pressure braided stainless steel inert Teflon® lined LCO2 Supply Hose, 5ft (approximate 1.5m) long.
  • LCO2 Filter Assembly (#8784) removes water/oil and particulates down to 0.5µm. Filter is conveniently pre-installed onto the LCO2 High Pressure Hose.
  • Static free exhaust tubing for the PURGE/VENT/BLEED and COOL exhaust outlets.
  • Flow Meter supplied allows precise periodic BLEED exhaust rate flow control.
  • Spare chamber O-ring (2), chamber lamps (2), and 5A slo-blow fuses (2).
  • User Manual and Check-Out data sheet.
  • Free lifetime technical support.
  • 2 year warranty on all parts and labor.
Optional Accessories
  • 8777: :SOTER™ CONDENSER
  • 8760-01: :KNURL NUT for any tousimis® Samdri® with a 1.25" Chamber I.D., except Autosamdri®-815, Series B
  • 8760-40: :5 AMP FUSE for SAMDRI® Models: PVT-3D, 795, 815, 815B, 915B (Series A & Series B Only)
  • 8770-10: :CHAMBER LAMP, 120Volt/60Hz
  • 8770-32: :HIGH-PRESSURE HOSE, 5ft
  • 8770-33: :HIGH-PRESSURE HOSE, 10ft
  • 8770-50: :CHAMBER LID, for any tousimis SAMDRI® with a 1.25" diameter chambers
  • 8784: :LCO2 Filter Assembly
  • 8784A: :LCO2 FILTER ELEMENT for #8784
  • 8770-83B: :0.5µm Stainless Steel Particulate Filter Element for LCO2 T-Filter or External Purge Line Filter.
  • 8784B: :O-Ring for # 8784 LCO2 Filter Assembly Seal
  • 8784-05: :Gasket for LCO2 Tank Connect
  • 8770-51: :O-Ring for 1.25" Chamber I.D.
  • 8770-45: :Flow Meter - Use with any 1.25" dia. Samdri® Chamber (20 SCFH)
  • 8770-53: :POWER CABLE
  • 8770-54: :LCO2 TANK SCALE W/ REMOTE READOUT
  • 8770-56: :Step-Down Transformer, 200-240V → 110-120V, 1000W
  • 8770-83: :Internal 0.5 µm Brass Particulate Line Filter
  • 8761: :GRID HOLDER, Holds 12 grids
  • 8762: :SAMPLE HOLDER, FOR 12 SAMPLES
  • 8763: :SAMPLE HOLDER, FOR 24 SAMPLES
  • 8764: :SAMPLE HOLDER, FOR 4 SAMPLES
  • 8766: :COVER SLIP HOLDER, for 9mm to 13mm Diameter Glass Cover Slips
  • 8766-01: :SPARE WASHERS FOR COVER SLIP HOLDER, for use with #8766
  • 8766-02: :STAINLESS STEEL SCREENS FOR COVER SLIP HOLDER, for use with #8766
  • 8767: :COVER SLIP HOLDER, for 16mm to 22mm Diameter Glass Cover Slips
  • 8767-01: :SPARE WASHERS FOR COVER SLIP HOLDER, for use with #8767
  • 8767-02: :STAINLESS STEEL SCREENS FOR COVER SLIP HOLDER, for use with #8767

Application Images

Bio-Film UBC Dentistry Microscopical Imaging Centre, Vancouver, BC

Fruit fly eye coated with platinum University of Missouri - EM Core Facility

Bacteria with Nanowires University of Missouri - EM Core Facility
