- Simplify CPD processing via microprocessor controller insuring Automatic processing and reproducibility of results.*
- Vernier handles on all metering valves allow for reproducible settings.
- Excellent choice for multi-user sites.
- Indicator LEDs signal every mode of operation at a glance.
- Internal filtration* protect samples and valves down to 0.5µm.
- EZ top loading process chamber.
- Under-lit chamber with viewing port aids visualization of chamber status.
- Internal surfaces inert to LCO2 and ultra-pure alcohols.
- Advanced solid state reliable electronics.
- Integrated temperature control.
- Fast adiabatic chamber cooling* with CO2.
- Static pressure control module for automatic pressure stability.
- Tough, solvent resistant cabinet.
- All electronic and other components meet UL, CE and/or U.S. Military Specifications.

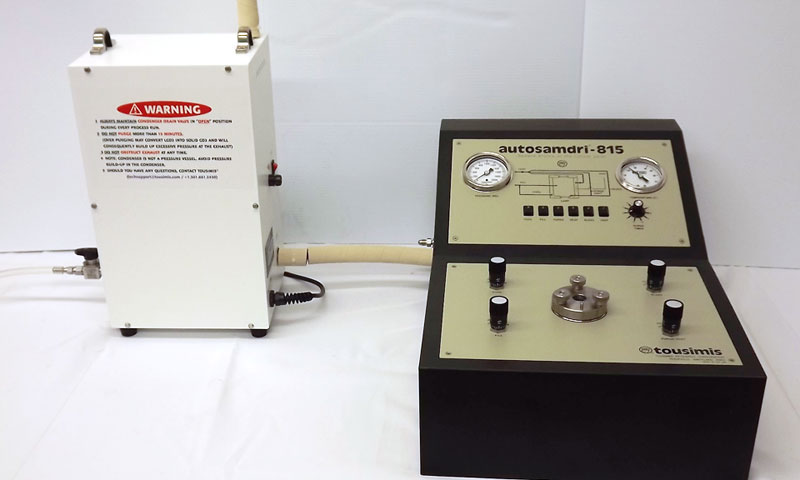

- Optional SOTER™ Condenser* can be attached to capture waste alcohol and deaden PURGE exhaust noise.

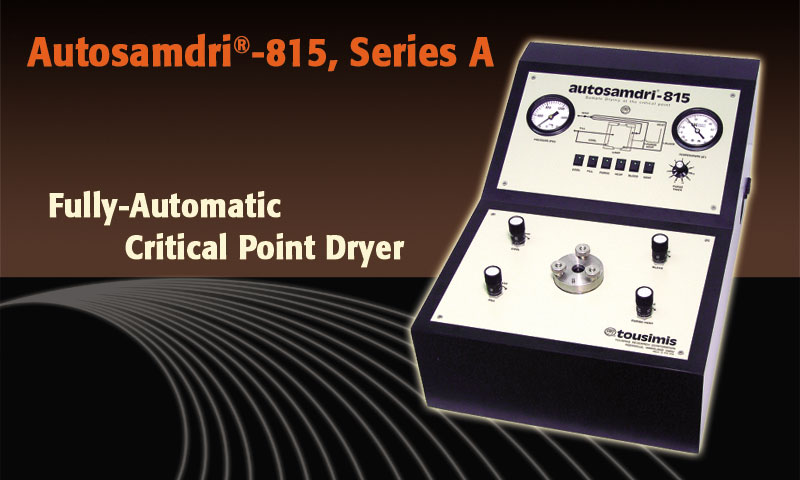

Autosamdri®-815, Series A
- The fully Automatic Critical Point Dryer
- 1.25" ID chamber and 1.25" height
The new Autosamdri®-815, Series A* was developed by Dr. A.J. Tousimis and a team of long-standing associates within our company's instrument design team. The Autosamdri®-815, Series A * is a fully Automatic Critical Point Dryer works with you and for you. Smooth operation and precise control insuring reproducible results are the Autosamdri®-815, Series A's trademark.
Features
Specifications
Standard Accessories
Optional Accessories
CPD MULTI-APPLICATIONS
- Cabinet: 14"(W)x 10.25"(H) x 21.50"(L) [35.6cm(W) x 26.0cm(H) x 54.6cm (L)]
- System Set-Up Area Required: 20"(W) x 30"(D) [51cm(W) x 76cm(D)]
- Chamber size: 1.25" I.D. x 1.25" Depth
- Temperature gauge range: -30°C to 60°C, Pressure gauge range: 0 to 2,000 psi.
- 120V / 50-60Hz (Other voltage units also available: Please inquire)
- Flexible High-Pressure braided stainless steel inert Teflon® lined LCO2 Supply Hose, 5ft (approximate 1.5m) long.
- LCO2 Filter Assembly (#8784) removes water/oil and particulates down to 0.5µm. Filter is conveniently pre-installed onto the LCO2 High Pressure Hose.
- Static free exhaust tubing for the PURGE/VENT/BLEED and COOL exhaust outlets.
- Flow Meter supplied allows precise periodic BLEED exhaust rate flow control.
- Spare chamber O-ring (2), chamber lamp (1), and 5A slo-blow fuses (2).
- User Manual and Check-Out data sheet.
- Free lifetime technical support.
- 2 year warranty on all parts and labor.
- 8777: :SOTER™ CONDENSER
- 8760-01: :KNURL NUT for 1.25" Process Chamber
- 8760-40: :5 AMP FUSE for SAMDRI® Models: PVT-3D, 795, 815, 815B, 915B (Series A & Series B Only)
- 8770-10: :CHAMBER LAMP, 120Volt/60Hz
- 8770-32: :HIGH-PRESSURE HOSE, 5ft
- 8770-33: :HIGH-PRESSURE HOSE, 10ft
- 8770-50: :CHAMBER LID, for any tousimis SAMDRI® with a 1.25" diameter chambers
- 8784: :LCO2 Filter Assembly
- 8784A: :LCO2 FILTER ELEMENT for #8784
- 8770-83B: :0.5µm Stainless Steel Particulate Filter Element for LCO2 T-Filter or External Purge Line Filter.
- 8784B: :O-Ring for # 8784 LCO2 Filter Assembly Seal
- 8784-05: :Gasket for LCO2 Tank Connect
- 8770-51: :O-Ring for 1.25" Chamber I.D.
- 8770-45: :Flow Meter - Use with any 1.25" dia. Samdri® Chamber (20 SCFH)
- 8770-53: :POWER CABLE
- 8770-54: :LCO2 TANK SCALE W/ REMOTE DISPLAY
- 8770-56: :Step-Down Transformer, 200-240V → 110-120V, 1000W
- 8770-83: :Internal 0.5 µm Brass Particulate Line Filter
- 8761: :GRID HOLDER, Holds 12 grids
- 8762: :SAMPLE HOLDER, FOR 12 SAMPLES
- 8763: :SAMPLE HOLDER, FOR 24 SAMPLES
- 8764: :SAMPLE HOLDER, FOR 4 SAMPLES
- 8766: :COVER SLIP HOLDER, for 9mm to 13mm Diameter Glass Cover Slips
- 8766-01: :SPARE WASHERS FOR COVER SLIP HOLDER, for use with #8766
- 8766-02: :STAINLESS STEEL SCREENS FOR COVER SLIP HOLDER, for use with #8766
- 8767: :COVER SLIP HOLDER, for 16mm to 22mm Diameter Glass Cover Slips
- 8767-01: :SPARE WASHERS FOR COVER SLIP HOLDER, for use with #8767
- 8767-02: :STAINLESS STEEL SCREENS FOR COVER SLIP HOLDER, for use with #8767
Application Images
Bio-Film UBC Dentistry Microscopical Imaging Centre, Vancouver, BC
Hair bundle from outer hair cell in the adult mouse cochlea inner ear Decibel Therapeutics, Inc.
Globba Cernua Androecium Royal Botanic Gardens Kew. UK
