Optional Accessories for Critical Point Dryers

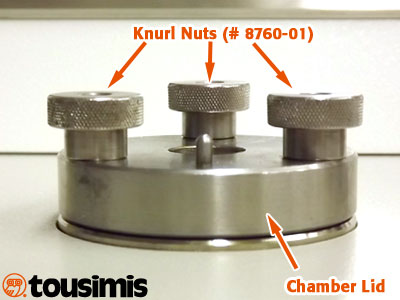

8760-01   KNURL NUT for 1.25" Process Chamber

For any tousimis® Samdri® with a 1.25" Chamber internal diameter (Except Autosamdri®-815, Series B)

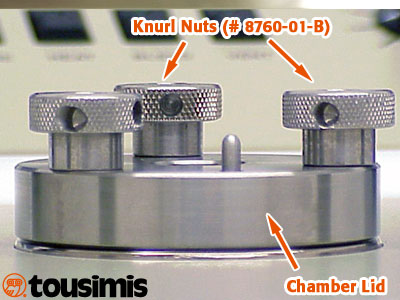

8760-01-B   Pin Spanner Knurl Nut for 1.25" Chamber with Teflon® O-Ring

Pin Spanner Knurl Nut for 1.25" Chamber with Teflon® O-Ring

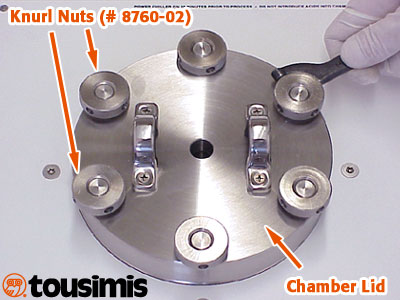

8760-02   KNURL NUT for 4" and 6" Process Chamber

For tousimis® Automegasamdri®-936, Autosamdri®-934, AutosamdriI®-815B and Automegasamdri®-915B Chamber.

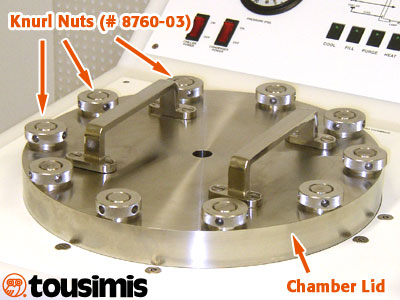

8760-03   KNURL NUT for 8" Process Chamber

For tousimis® 8 in Chamber.




8760-17   CHAMBER O-Ring FOR SAMDRI®-PVT-3 or SAMDRI® Regulated

Chamber O-Ring for Samdri®-PVT-3 or Samdrireg; Regulated

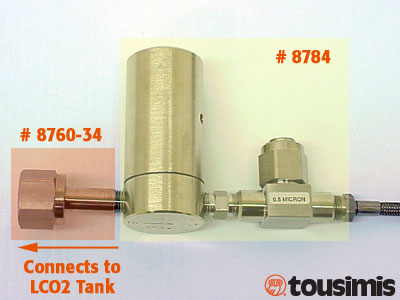

8760-34   CGA - 320 S.S. Coupler Connection to LCO2 Tank

Includes CGA - 320 S.S. Coupler Connection Nut to LCO2 Tank and CGA - 320 S.S. Nipple.

Click here for Printable Description

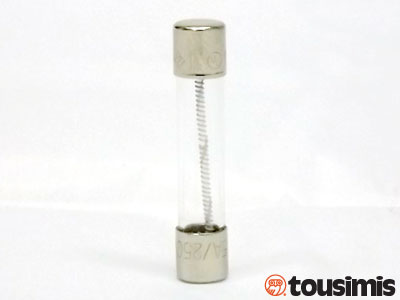

8760-40   5 AMP FUSE for SAMDRI® Models: PVT-3D, 795, 815, 815B, 915B (Series A & Series B Only)

For all tousimis® SAMDRI® Critical Point Dryers except Series C




8760-41   3 AMP FUSE for Autosamdri®, Automegasamdri® and Touchscreen Series C

For Automegasamdri®-938, Automegasamdri®-936, Autosamdri®-934, Automegasamdri®-916B, Series C, Automegasamdri®-915B, Series C and Autosamdri®-815B, Series C Critical Point Dryers




8760-42   8 AMP FUSE for Autosamdri®, Automegasamdri® and Touchscreen Series C

For Automegasamdri®-938, Automegasamdri®-936, Autosamdri®-934, Automegasamdri®-916B, Series C, Automegasamdri®-915B, Series C and Autosamdri®-815B, Series C Critical Point Dryers

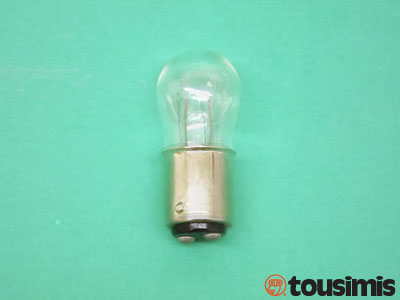

8770-10   CHAMBER LAMP, 120Volt/60Hz

For illumination of the tousimis® SAMDRI® Chamber.

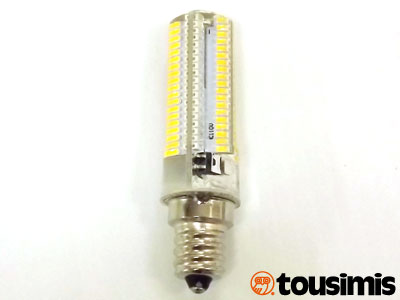

8770-13   LED CHAMBER LAMP, 120V

For illumination of the tousimis® SAMDRI®, Autosamdri® and Automegasamdri® Chamber




8770-13A   LED CHAMBER LAMP, 220V

For illumination of the tousimis® SAMDRI®, Autosamdri® and Automegasamdri® Chamber




8770-32   HIGH-PRESSURE HOSE, 5ft

High Pressure Hose w/ Flexi-Stainless Steel braided outer core, Teflon® lined inner core. Connects any tousimis® Samdri® to the LCO2 tank. 5ft(approximate 1.5m) length.

This is the standard hose length supplied with each Samdri®-PVT-3D, Samdri®-795, and AutoSamdri®-815, Series A.

LCO2 FILTER HOUSING (Cat# 8784) AND CGA-320 S.S. COUPLER (Cat# 8760-34) SOLD SEPARATELY.

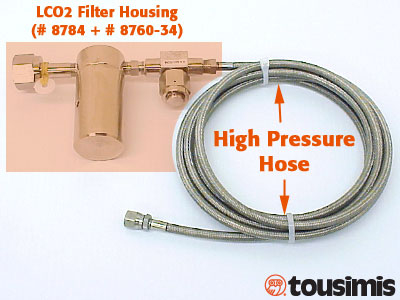

8770-33   HIGH-PRESSURE HOSE, 10ft

High Pressure Hose w/ Flexi-Stainless Steel braided outer core, Teflon® lined inner core. Connects any tousimis® Samdri® to the LCO2 tank. 10ft(approximate 3m) length.

This is the standard hose length supplied with each Autosamdri®-815, Series B, AutoSamdri®-815B, Series A, AutoSamdri®-815B, Series B, Autosamdri®-934, AutomegaSamdri®-915B, Series B, AutomegaSamdri®-936, and AutomegaSamdri®-938.

LCO2 FILTER HOUSING (Cat# 8784) , DOUBLE T-FILTER ASSEMBLY (Cat# 8785) AND CGA-320 S.S. COUPLER (Cat# 8760-34) SOLD SEPARATELY.




8770-40   5 AMP FUSE for Samdri® Models up to Autosamdri®-814

For all tousimis® SAMDRI® and Critical Point Dryers

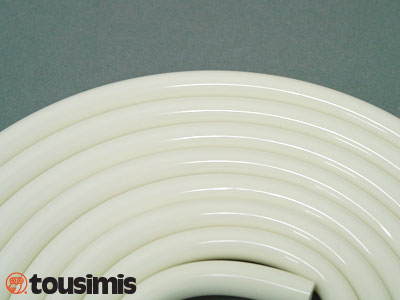

8770-43   White Static Free SAMDRI® Exhaust Tubing

White Static Free SAMDRI® Exhaust Tubing. Flexible. Used to exhaust gaseous CO2. 1/4" ID. 5' (1.5m) length.
Should you require a certain uncut length in excess of 5', simply request the total desired length in 5' increments. We will then ship that length of uncut hose.

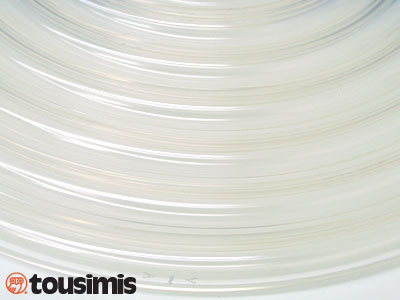

8770-44   Clear Inert Tygon® SAMDRI® Exhaust Tubing

Clear Inert Tygon® SAMDRI® Exhaust Tubing. Flexible. Used to exhaust alcohols and CO2. 1/4" ID. 5' (1.5m) length.

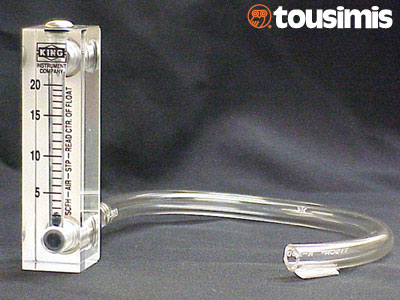

8770-45   Flow Meter - Use with any 1.25" dia. Samdri® Chamber (20 SCFH)

Flow Meter - Use with any 1.25" dia. Samdri® Chamber (20 SCFH)

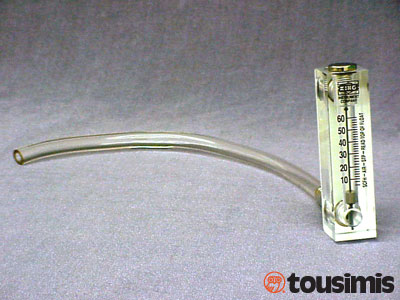

8770-46   Flow Meter - Use with any 2.5", 3.4" and 4.0" dia. Autosamdri® Chamber (60 SCFH)

Flow Meter - Use with Autosamdri®-934, Autosamdri®-815B and Autosamdri®-931 (2.5" and 3.4" Chamber Units)
(60 SCFH)

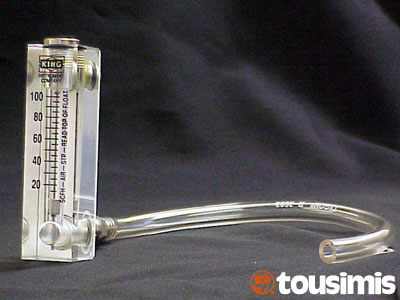

8770-47   Flow Meter - Use with Automegasamdri®-936 and Automegasamdri®-915B (100 SCFH)

Flow Meter - Use with Automegasamdri®-936 and Automegasamdri®-915B (100 SCFH)

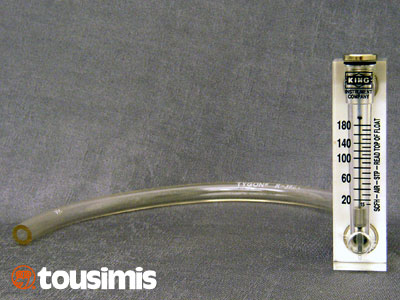

8770-48   Flow Meter - Use with Automegasamdri®-938 or Automegasamdri®-916B(180 SCFH)

Flow Meter - Use with or Automegasamdri®-938 or Automegasamdri®-916B (180 SCFH)

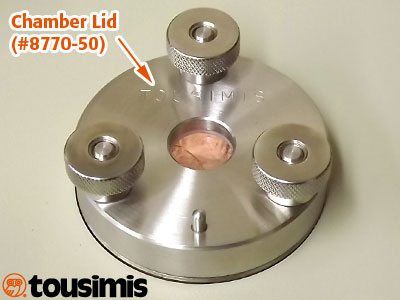

8770-50   CHAMBER LID, for any tousimis SAMDRI® with a 1.25" diameter chambers

Stainless steel, quartz window, specify any tousimis® SAMDRI®, AutoSamdri® with a 1.25" diameter Camber.

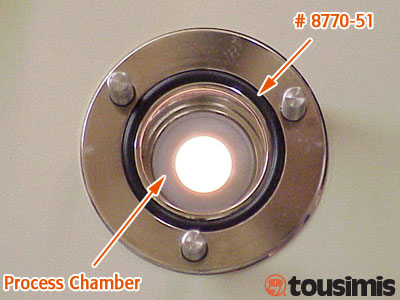

8770-51   O-Ring for 1.25" Chamber I.D.

SAMDRI Chamber O-Ring formulated with long lasting material for optimum process results. This O-Ring is good for any tousimis® SAMDRI® Chamber with 1.25" I.D.

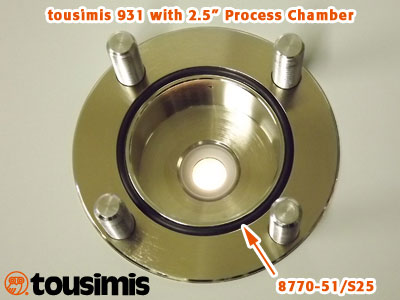

8770-51/S25   O-Ring for tousimis®-931 with 2.5" I.D. Chamber

For tousimis® 931 with 2.5" I.D. Chamber. Non-Cleanroom.

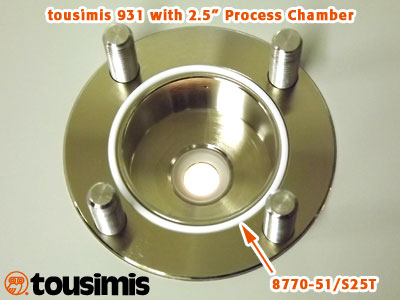

8770-51/S25T   Teflon® O-Ring for tousimis®-931 with 2.5" I.D. Chamber

tousimis®-931 with 2.5" I.D. Chamber.
Cleanroom Compatible.

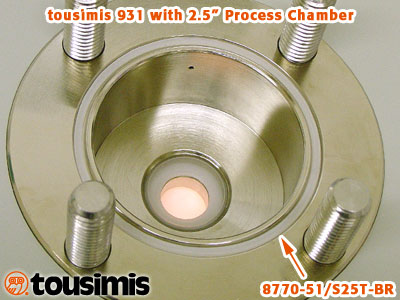

8770-51/S25T-BR   Backing Ring for tousimis®-931 with 2.5" I.D. Chamber

For tousimis®-931 with 2.5" I.D. Chamber.
Cleanroom Compatible.

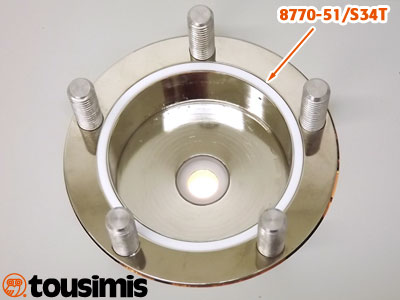

8770-51/S34T   Teflon® O-Ring for tousimis®-931 with 3.4" I.D. Chamber

tousimis®-931 with 3.4" I.D. Chamber.
Cleanroom Compatible.

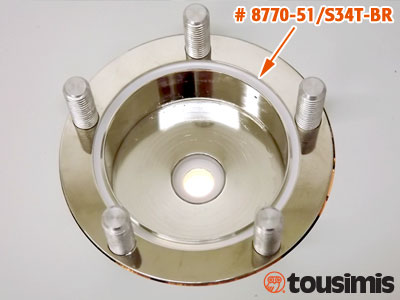

8770-51/S34T-BR   Backing Ring for tousimis®-931 with 3.4" I.D. Chamber

For tousimis®-931 with 3.4" I.D. Chamber.
Cleanroom Compatible.

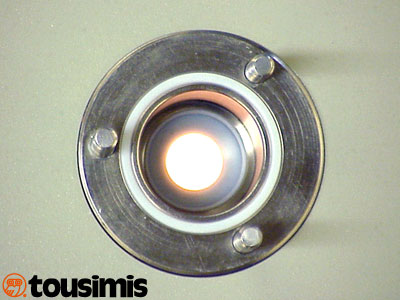

8770-51/T   Teflon® O-Ring for 1.25" Chamber I.D.

O-Ring, Teflon® for 1.25" ID Samdri® Chambers. For any tousimis® Samdri® Chamber with 1.25" I.D. Extremely long lasting chemically inert o-ring recommended for use with methanol and/or I.P.A.

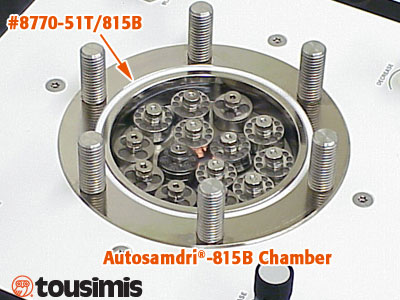

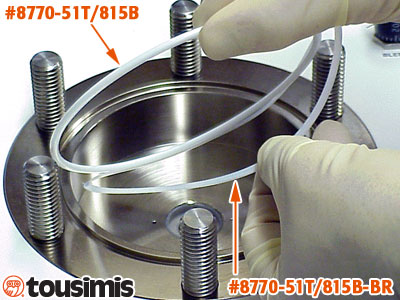

8770-51T/815B   O-Ring for Autosamdri®-934 and Autosamdri®-815B

For tousimis® Autosamdri®-934 and Autosamdri®-815B




8770-51T/815B-BR   Backing Ring for tousimis® Autosamdri®-934 and Autosamdri®-815B

Backing Ring for tousimis® Autosamdri®-934 and Autosamdri®-815B

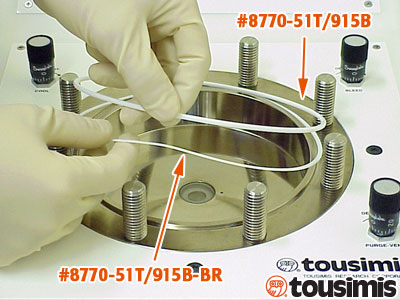

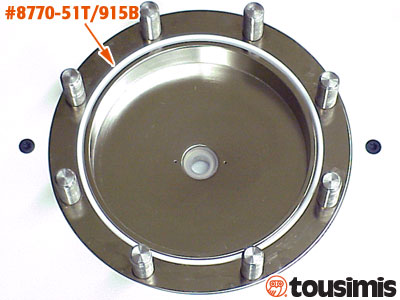

8770-51T/915B   O-Ring for Automegasamdri®-936 and Automegasamdri®-915B

For tousimis® Automegasamdri®-936 and Automegasamdri®-915B




8770-51T/915B-BR   Backing Ring for tousimis® Automegasamdri®-936 and Automegasamdri®-915B

Backing Ring for tousimis® Automegasamdri®-936 and Automegasamdri®-915B

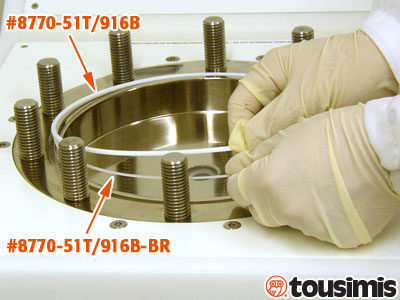

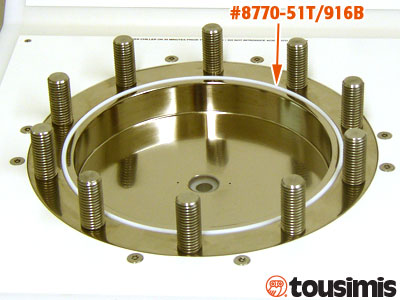

8770-51T/916B   O-Ring for AutomegaSamdri®-938 and AutomegaSamdri®-916B

For tousimis® AutomegaSamdri®-938 and AutomegaSamdri®-916B




8770-51T/916B-BR   Backing Ring for tousimis® AutomegaSamdri®-938 and Automegasamdri®-916B

Backing Ring for tousimis® AutomegaSamdri®-938 and Automegasamdri®-916B

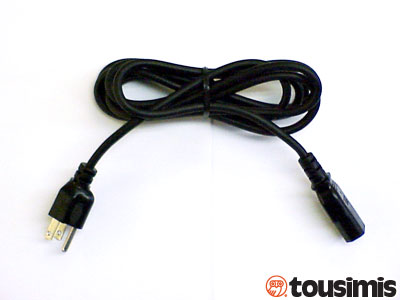

8770-53   POWER CABLE

Three prong, 110V/20 Amp, can be used in any current model tousimis® SAMDRI®.

For older model Samdri®, please click here.

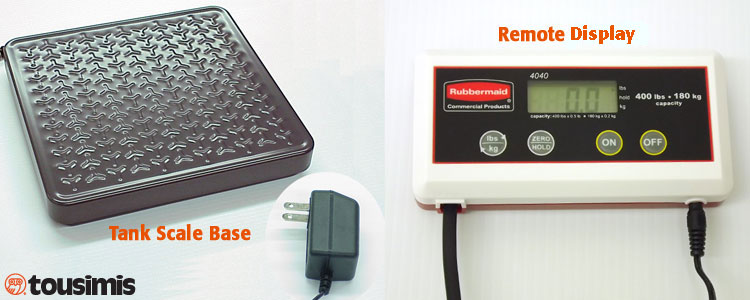

8770-54   LCO2 TANK SCALE W/ REMOTE DISPLAY

LCO2 tank scale with remote LCD readout display. Best way to monitor LCO2 consumption is based on tank weight and not tank pressure. 400lb capacity. Reads either Lb or Kg.
Power Supply Input Voltage: 100-240V
Platform Dimensions: 12.0"(W) x 12.5"(L) x 2.0"(H)

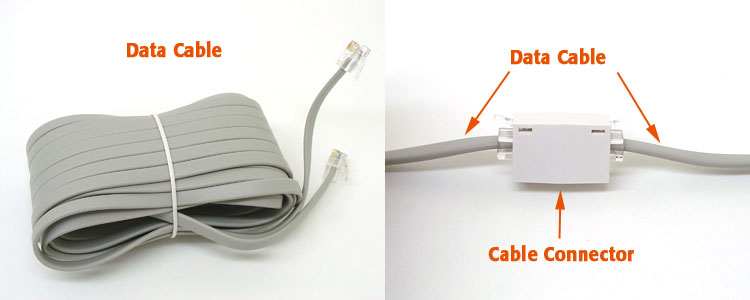

8770-54-DC   Tank Scale Data Cable (25') with a Cable Connector

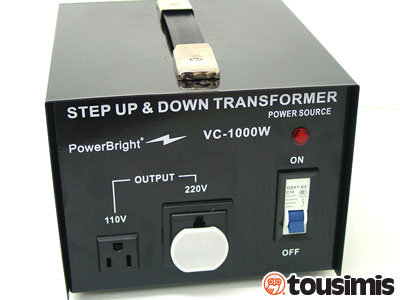

8770-56   Step-Down Transformer, 200-240V → 110-120V, 1000W

Transforms input voltage from 200V to 240V, 50/60Hz down to 110-120V for proper voltage input for the following SAMDRI® models: SAMDRI®-PVT-3D, SAMDRI®-795, Autosamdri®-815
Dimensions (WxDxH): 7.2"(18.3cm) x 8.25"(21cm) x 6"(15.2cm)

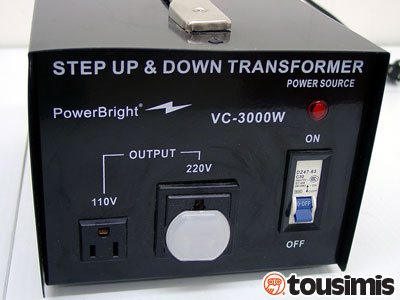

8770-56A   Step-Down Transformer, 200-240V → 110-120V, 3000W

Transforms input voltage from 200V to 240V, 50/60Hz down to 110-120V for proper voltage input for the following SAMDRI® models: Autosamdri®-815B, Automegasamdri®-915B, Automegasamdri®-916B
Dimensions (WxDxH): 7.2"(18.3cm) x 9.8"(24.9cm) x 6"(15.2cm)

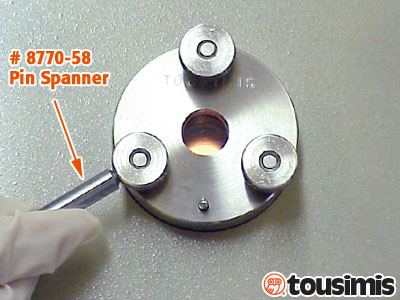

8770-58   Pin Spanner for 1.25" Chamber Knurl Nut

Pin Spanner for 1.25" Chamber Knurl Nut

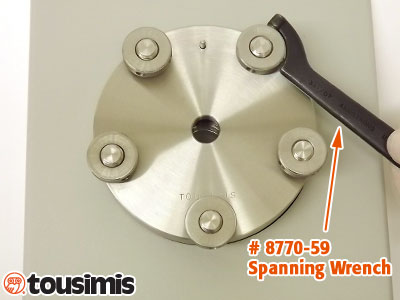

8770-59   Spanning Wrench

Spanning Wrench for Autosamdri®-931 (2.5" & 3.4" Chamber), Automegasamdri®-938, Automegasamdri®-936, Autosamdri®-934, Autosamdri®-815B, Automegasamdri®-915B abd Automegasamdri®-916B,

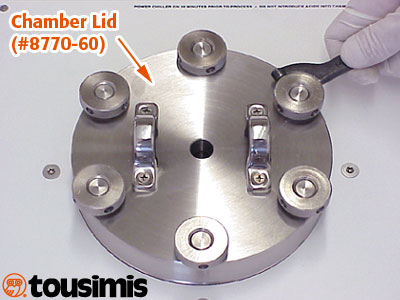

8770-60   CHAMBER LID for 4" Process Chamber

Stainless steel, quartz window, specify tousimis AutoSamdri®-815B.

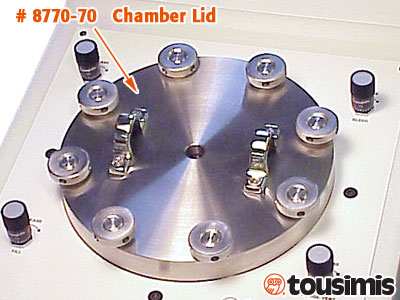

8770-70   CHAMBER LID for 6" Process Chamber

Stainless steel, quartz window, specify tousimis Automegasamdri®-936 and Automegasamdri®-915B

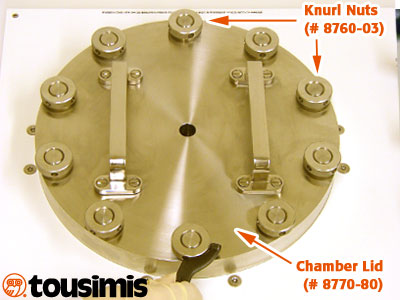

8770-80   CHAMBER LID for 4" Process Chamber

Stainless steel, quartz window, specify for tousimis AutomegaSamdri®-916B or Automegasamdri®-938

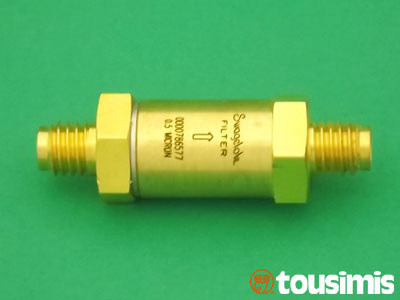

8770-83   Internal 0.5 µm Brass Particulate Line Filter

Internal 0.5 µm Brass Particulate Line Filter

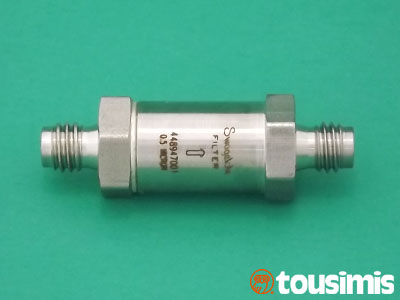

8770-83A   Internal 0.5µm 316SS Particulate Line Filter

Internal 0.5µm 316SS Particulate Line Filter

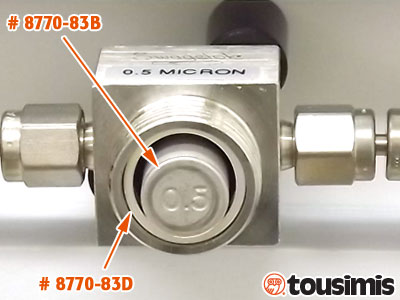

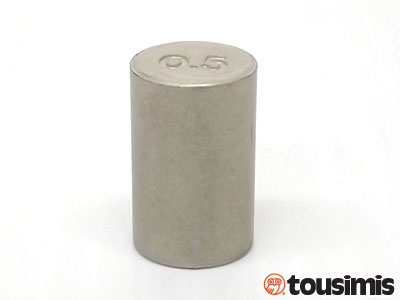

8770-83B   0.5µm Stainless Steel Particulate Filter Element for LCO2 T-Filter or External Purge Line Filter.

0.5µm Stainless Steel Particulate Filter Element for LCO2 T-Filter or External Purge Line Filter




8770-83D   0.5µm Stainless Steel Particulate Filter Gasket for LCO2 T-Filter or External Purge Line Filter.

0.5µm Stainless Steel Particulate Filter Gasket for LCO2 T-Filter or External Purge Line Filter




8770-83E   0.08µm High Purity LCO2 Supply Filter Element

0.08µm High Purity LCO2 Supply Filter Element

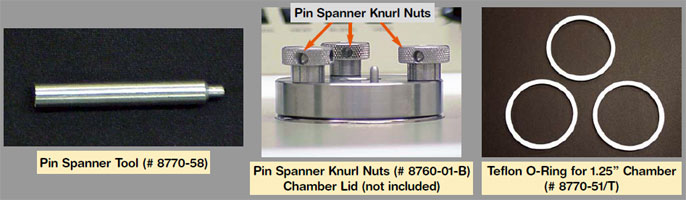

8770-91   Acetone Package Kit for 1.25" Process Chamber

Click here for Detail Description

100% acetone may be used instead of the usual high purity alcohol without requiring any other changes to current generation SAMDRI® or AUTOSAMDRI® systems.
Contains 3 Teflon® O-Rings, 3 Pin Spanner Knurl Nuts, and 1 Pin Spanner.

Please consult tousimis® for the Acetone compatibility of your CPD by providing model and serial number

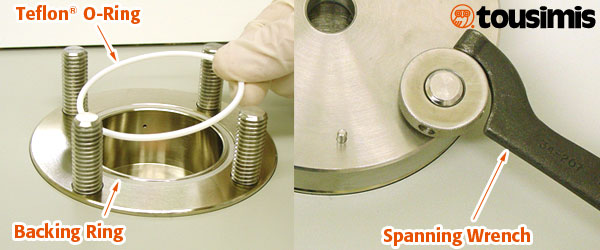

8770-91A   Acetone Package Kit for 2.5" Process Chamber

Click here for Detail Description

100% acetone may be used instead of the usual high purity alcohol without requiring any other changes to current generation SAMDRI® or AUTOSAMDRI® systems.
Contains 3 Teflon® O-Rings, 1 Backing Ring, and 1 Spanning wrench.

Please consult tousimis® for the Acetone compatibility of your CPD by providing model and serial number.

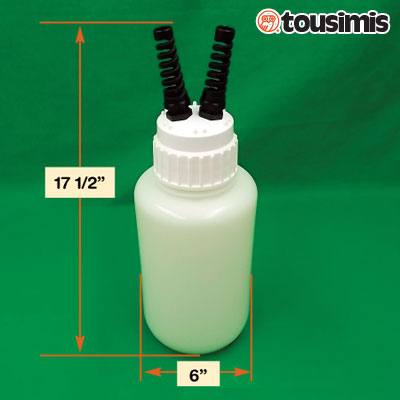

8770-94   Carboy, Carboy, 1 gallon capacity with 2 quick-connects for securing 1/4" ID Exhaust tubing

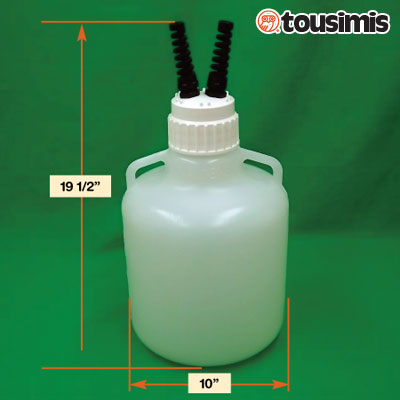

8770-95   Carboy, 2.5 gallon capacity with 2 quick-connects for securing 1/4" ID Exhaust tubing

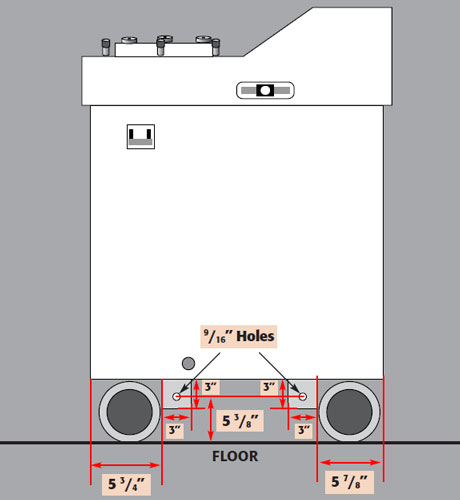

8770-96   Seismic Tie Down Kit

Includes 4 Al-tangs inside each wheel of frame that may be thru bolted to provided L-Brackets. L-Brackets secure CPD to Floor.




8770-HPS-180   HIGH-PRESSURE HOSE, 10ft to 15ft (3.0m-4.5m)

High Pressure Hose w/ Flexi-Stainless Steel braided outer core, Teflon® lined inner core. Connects any tousimis® Samdri® to the LCO2 tank.

PLEASE SPECIFY EXACT HOSE LENGTH

LCO2 FILTER HOUSING (Cat# 8784) , DOUBLE T-FILTER ASSEMBLY (Cat# 8785) AND CGA-320 S.S. COUPLER (Cat# 8760-34) SOLD SEPARATELY.




8770-HPS-240   HIGH-PRESSURE HOSE, 16ft to 20ft (4.6m-6.0m)

High Pressure Hose w/ Flexi-Stainless Steel braided outer core, Teflon® lined inner core. Connects any tousimis® Samdri® to the LCO2 tank.

PLEASE SPECIFY EXACT HOSE LENGTH

LCO2 FILTER HOUSING (Cat# 8784) , DOUBLE T-FILTER ASSEMBLY (Cat# 8785) AND CGA-320 S.S. COUPLER (Cat# 8760-34) SOLD SEPARATELY.




8770-HPS-300   HIGH-PRESSURE HOSE, 21ft to 25ft (6.1m-7.5m)

High Pressure Hose w/ Flexi-Stainless Steel braided outer core, Teflon® lined inner core. Connects any tousimis® Samdri® to the LCO2 tank.

PLEASE SPECIFY EXACT HOSE LENGTH

LCO2 FILTER HOUSING (Cat# 8784) , DOUBLE T-FILTER ASSEMBLY (Cat# 8785) AND CGA-320 S.S. COUPLER (Cat# 8760-34) SOLD SEPARATELY.




8770-HPS-360   HIGH-PRESSURE HOSE, 26ft to 33ft (7.6m-10.0m)

High Pressure Hose w/ Flexi-Stainless Steel braided outer core, Teflon® lined inner core. Connects any tousimis® Samdri® to the LCO2 tank.

PLEASE SPECIFY EXACT HOSE LENGTH

LCO2 FILTER HOUSING (Cat# 8784) , DOUBLE T-FILTER ASSEMBLY (Cat# 8785) AND CGA-320 S.S. COUPLER (Cat# 8760-34) SOLD SEPARATELY.




8770-HPS-540   HIGH-PRESSURE HOSE, 50' Length (15m)

High Pressure Hose w/ Flexi-Stainless Steel braided outer core, Teflon® lined inner core. Connects any tousimis® Samdri® to the LCO2 tank.

LCO2 FILTER HOUSING (Cat# 8784) , DOUBLE T-FILTER ASSEMBLY (Cat# 8785) AND CGA-320 S.S. COUPLER (Cat# 8760-34) SOLD SEPARATELY.

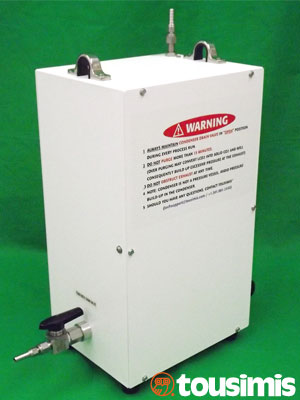

8777   SOTER™ CONDENSER

Click here for Detail Description

SOTER™ Condenser quietly separates waste alcohol from CO2 exhaust discharge from your SAMDRI® process chamber. 15' Carboy exhaust Tubing, 10' Condenser exhaust tubing, 3' clear drain tubing and Exhaust Connect included with SOTER Condenser.

(Note: Please contact tousimis ( trc@tousimis.com ) if you are adding SOTER™ Condenser to your existing SAMDRI® for technical consultation. Some SAMDRI®'s may require minor retrofitting at our service facility with the proper hardware for a safe connection).

120V/50-60Hz (1A) or 220V/50-60Hz (0.5A)
Dimensions (WxDxH): 14"(35.5cm) x 7"(17.8cm) x 18"(45.7cm)

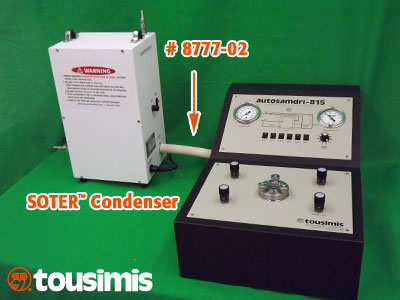

8777-02   Exhaust Connect for any SAMDRI® or AUTOSAMDRI® CPD to SOTER Condenser. Flexi-Insulated, 8" length.

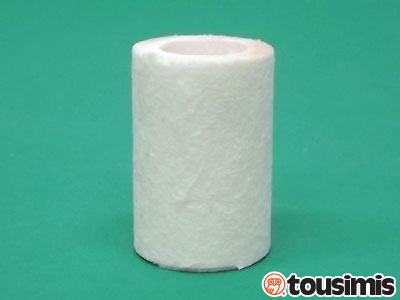

8781A   REPLACEMENT LCO2 FILTER ELEMENT for #8781

For #8781, high pressure particulate filter element removes particles down to 0.5 µm. Particles not only advance wear on instrument valves, but adhere to strategic sample surfaces which may be mistaken as part of the sample.

Diameter: 0.725 (18.42mm)
Length: 1.1375" (28.89mm)

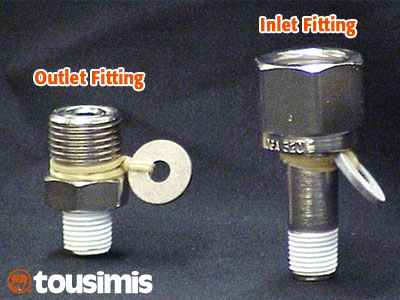

8783   LCO2 Filter Adaptor Kit

Click here for Detail Description

The LCO2 Filter Adaptor Kit connects the LCO2 Filter Housing (Cat#8784) to any non-tousimis CPD or lab tool requiring LCO2 filtration.

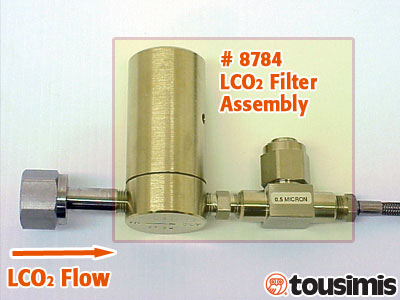

8784   LCO2 Filter Assembly

Click here for Printable Description

Liquid-CO2 Filter Assembly for LCO2 Supply line. Removes Oil / Water / and Particulates down to 0.5 µm. Includes 1 x Cat# 8784A filter element.

#8784 LCO2 Filter Assembly may be added to any apparatus requiring clean LCO2 delivery in combination with our LCO2 Filter Adapter Kit (Cat# 8783, Sold separately).

(High Pressure Hose sold separately)

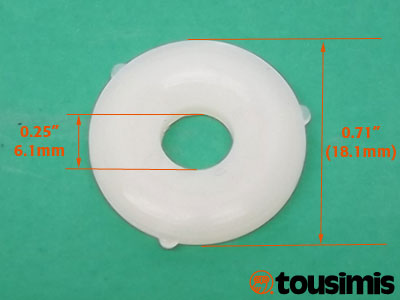

8784-05   Gasket for LCO2 Tank Connect

CGA Standard: Fits either CGA-320 or CGA-330
Application: Non-Corrosive Liquids and Gases
Material: Nylon
Max. Working Pressure: 3000 psi
Dimensions: OD 0.71" (18.1mm) / ID 0.25" (6.1mm) / Thickness 0.085" (2.2mm)

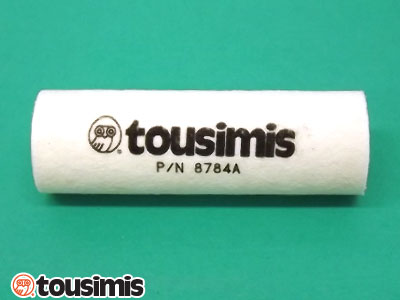

8784A   LCO2 FILTER ELEMENT for #8784

LCO2 Filter Element for #8784 LCO2 Filter Assembly. Filters trace Oil / Water / Particulates to 0.5 µm.

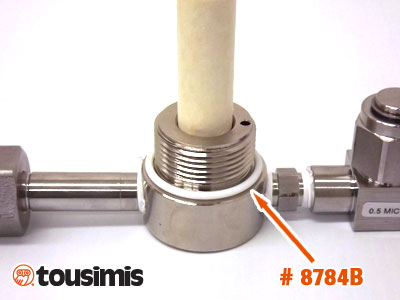

8784B   O-Ring for # 8784 LCO2 Filter Assembly Seal

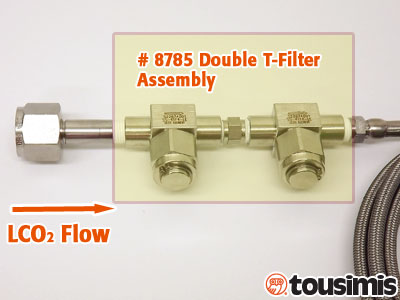

8785   Double T-Filter Assembly

Click here for Printable Description

Double-T Filter Assembly. Flows LCO2 twice thru 0.5 µm filters with 99.5% particulate retention prior to LCO2 entering SAMDRI or AUTOSAMDRI systems. Comes with pre-installed 0.5 µm SS216 scintered filter elements.

(High Pressure Hose sold separately)

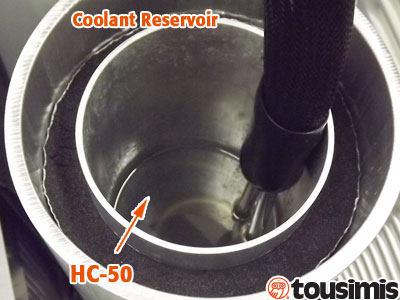

8785-47A   HC-50 Chiller Fluid

Series C Special Chiller Fluid. Temperature Range: -50C to +218C
Click here to download SDS
