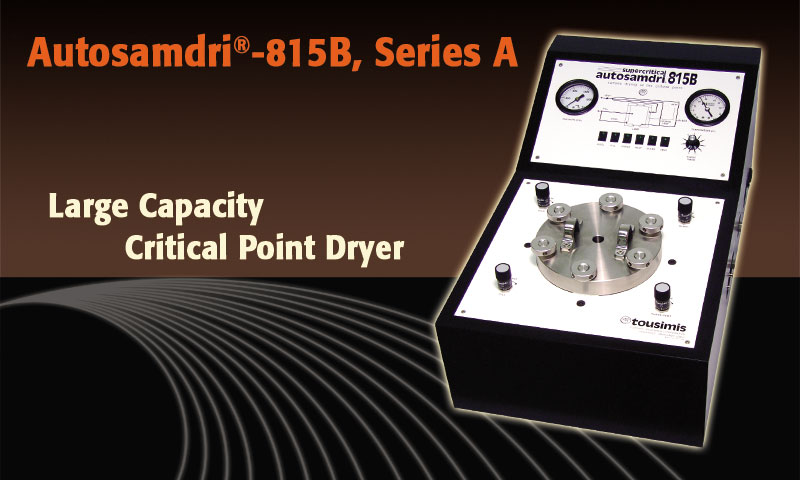

Autosamdri®-815B, Series A

  • Large Capacity Fully Automatic Critical Point Dryer
  • Process large or numerous smaller samples



tousimis catalog# 8780B
  Download Brochure (PDF)
  Operational Demo Video
  Active Image for CPD and Accessories
The Autosamdri®-815B, Series A was developed by Dr. A. J. Tousimis and a team of long-standing associates within the tousimis® organization to meet the needs of facilities processing large quantities or large samples. The Autosamdri®-815B is an instrument that works with you and for you, i.e. automatic (works by itself) when you forget it and manually if desired. The reaction of the first laboratories that have used this unique instrument has overwhelmed us!
The chamber of the Autosamdri®-815B has a 4.50" internal diameter (ID) chamber.
Features
  • Extra large chamber capable of drying very large or numerous smaller samples.
  • Excellent choice for active facility enhancing process CPD capability.
  • Chamber Inserts* reduces chamber ID to 3", 2" or 1.25" I.D. maximizing LCO2 consumption efficiency and process time.
  • Vernier handles on all metering valves allow for reproducible settings.
  • Indicator control LED's panel effectively indicate run status.
  • Internal filtration* protect samples and valves down to 0.5µm.
  • EZ top loading process chamber.
  • Under-lit chamber with viewing port aids visualization of chamber status.
  • Internal surfaces inert to LCO2 and ultra-pure alcohols.
  • Advanced solid state reliable electronics.
  • Microprocessor* controller for repeatable operating parameters insuring reproducibility of results via Automatic process.
  • Integrated temperature control.
  • Fast adiabatic chamber cooling* with CO2.
  • Static pressure control module for automatic pressure stability.
  • Tough, solvent resistant cabinet.
  • SOTER™ Condenser* is included with system to capture waste alcohol and deaden PURGE exhaust noise.
  • All electronic and other components meet UL, CE and/or U.S. Military Specifications.
Specifications
  • Cabinet: 14.25"(W)x 11.75"(H) x 25.0"(L) [36.2cm(W) x 29.8cm(H) x 63.5cm (L)]
  • System Set-Up Area Required: 42"(W) x 30"(D) [107cm(W) x 76cm(D)]
  • Chamber size: 4.5" I.D. x 1.25" Depth
  • Temperature gauge range: -30°C to 60°C, Pressure gauge range: 0 to 2,000 psi.
  • 120V / 50-60Hz (Other voltage units also available: Please inquire)

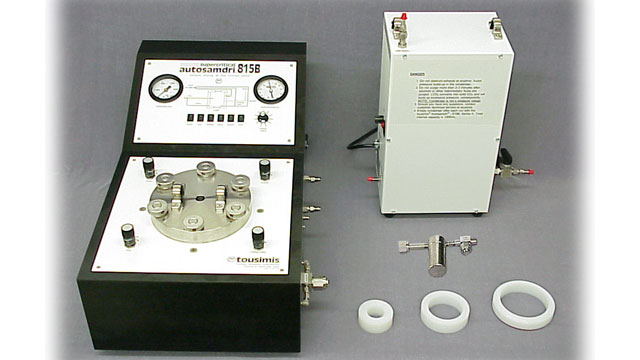

Standard Accessories
  • 3 Teflon® chamber inserts. Enables chamber ID to reduce to 3", 2" or 1.25" I.D.
  • SOTER™ Condenser captures all alcohol and deadens exhaust noise.*
  • Flexible High-Pressure braided stainless steel inert Teflon® lined LCO2 Supply Hose, 10ft (approximate 3.0m) long.
  • LCO2 Filter Assembly (#8784) removes water/oil and particulates down to 0.5µm. Filter is conveniently pre-installed onto the LCO2 High Pressure Hose.
  • Static free exhaust tubing for the PURGE/VENT/BLEED and COOL exhaust outlets.
  • Flow Meter supplied allows precise periodic BLEED exhaust rate flow control.
  • Spare chamber O-ring (2), chamber lamps (2), and 5A slo-blow fuses (2).
  • User Manual and Check-Out data sheet.
  • Free lifetime technical support.
  • 2 year warranty on all parts and labor.
Optional Accessories
  • 8760-02: :KNURL NUT for tousimis® Autosamdri®-815B and Automegasamdri®-915B
  • 8760-40: :5 AMP FUSE for SAMDRI® Models: PVT-3D, 795, 815, 815B, 915B (Series A & Series B Only)
  • 8770-10: :CHAMBER LAMP, 120Volt/60Hz
  • 8770-32: :HIGH-PRESSURE HOSE, 5ft
  • 8770-33: :HIGH-PRESSURE HOSE, 10ft
  • 8770-60: :CHAMBER LID for tousimis AutoSamdri®-815B
  • 8784: :LCO2 Filter Assembly
  • 8784A: :LCO2 FILTER ELEMENT for #8784
  • 8770-83B: :0.5µm Stainless Steel Particulate Filter Element for LCO2 T-Filter or External Purge Line Filter.
  • 8784B: :O-Ring for # 8784 LCO2 Filter Assembly Seal
  • 8784-05: :Gasket for LCO2 Tank Connect
  • 8770-51T/815B: :O-Ring for AutoSamdri®-815B
  • 8770-46: :Flow Meter - Use with any 2.5", 3.4" and 4.0" dia. Autosamdri® Chamber (60 SCFH)
  • 8770-53: :POWER CABLE
  • 8770-54: :LCO2 TANK SCALE W/ REMOTE READOUT
  • 8770-56A: :Step-Down Transformer, 200-240V → 110-120V, 3000W
  • 8770-83A: :Internal 0.5µm 316SS Particulate Line Filter
  • 8761: :GRID HOLDER, Holds 12 grids
  • 8762: :SAMPLE HOLDER, FOR 12 SAMPLES
  • 8763: :SAMPLE HOLDER, FOR 24 SAMPLES
  • 8764: :SAMPLE HOLDER, FOR 4 SAMPLES
  • 8766: :COVER SLIP HOLDER, for 9mm to 13mm Diameter Glass Cover Slips
  • 8766-01: :SPARE WASHERS FOR COVER SLIP HOLDER, for use with #8766
  • 8766-02: :STAINLESS STEEL SCREENS FOR COVER SLIP HOLDER, for use with #8766
  • 8767: :COVER SLIP HOLDER, for 16mm to 22mm Diameter Glass Cover Slips
  • 8767-01: :SPARE WASHERS FOR COVER SLIP HOLDER, for use with #8767
  • 8767-02: :STAINLESS STEEL SCREENS FOR COVER SLIP HOLDER, for use with #8767
