Sample Holders

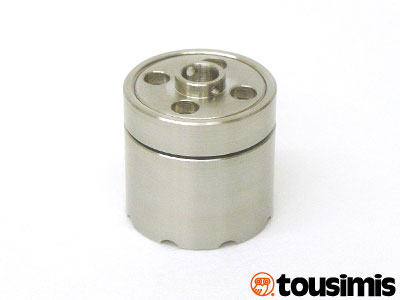

Small Particle Holder
Holder includes pre-installed 30 µm particulate screens.
Small particles retained down to 30 µm.
Patent Pending "Quick Release" Design provides flexibility to quickly change screen sizes Down to 2 µm.
10 µm (Cat # 8769B) and 2 µm (Cat # 8769C) small particle screen sizes available.
Small particles retained down to 30 µm.
Patent Pending "Quick Release" Design provides flexibility to quickly change screen sizes Down to 2 µm.
10 µm (Cat # 8769B) and 2 µm (Cat # 8769C) small particle screen sizes available.
Catalog # 8769

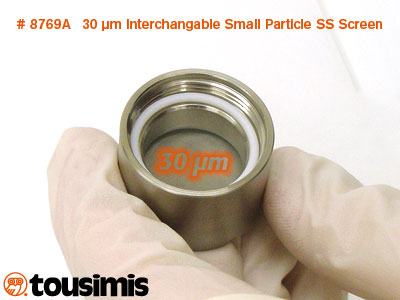

30µm Interchangeable Small Particle SS Screen Set. 2 screens per set.
Catalog # 8769A (2 Screens/Set)
10µm Interchangeable Small Particle SS Screen Set. 2 screens per set.
Catalog # 8769B (2 Screens/Set)
2µm Interchangeable Small Particle SS Screen Set. 2 screens per set.
Catalog # 8769C (2 Screens/Set)

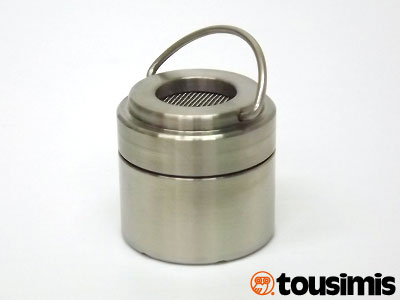

1" Large Capacity Holder
Material: SS316
Interior 0.7" Ht x 1.0" I.D. (17.8 mm Ht x 25.4 mm I.D.)
Exterior 1.05" Ht x 1.20" O.D. (26.7 mm Ht x 30.5 mm O.D.)
Mesh Material: SS 316
Mesh Size: 35x35
Opening: 0.017" (0.43mm)
Interior 0.7" Ht x 1.0" I.D. (17.8 mm Ht x 25.4 mm I.D.)
Exterior 1.05" Ht x 1.20" O.D. (26.7 mm Ht x 30.5 mm O.D.)
Mesh Material: SS 316
Mesh Size: 35x35
Opening: 0.017" (0.43mm)
Catalog # 8771A

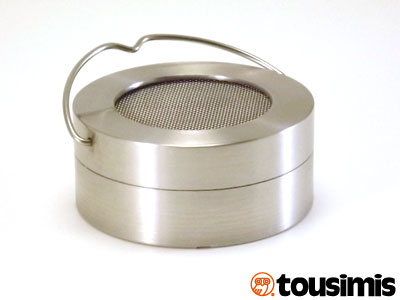

2" Large Capacity Holder
Material: SS316
Interior 0.7" Ht x 2.0" I.D. (17.8 mm Ht x 50.8 mm I.D.)
Exterior 1.05" Ht x 2.25" O.D. (26.7 mm Ht x 57.2 mm O.D.)
Mesh Material: SS 316
Mesh Size: 35x35
Opening: 0.017" (0.43mm)
Interior 0.7" Ht x 2.0" I.D. (17.8 mm Ht x 50.8 mm I.D.)
Exterior 1.05" Ht x 2.25" O.D. (26.7 mm Ht x 57.2 mm O.D.)
Mesh Material: SS 316
Mesh Size: 35x35
Opening: 0.017" (0.43mm)
Catalog # 8771B

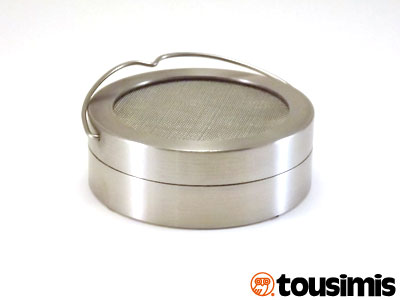

3" Large Capacity Holder
Material: SS316
Interior 0.7" Ht x 3.0" I.D. (17.8 mm Ht x 76.2 mm I.D.)
Exterior 1.05" Ht x 3.25" O.D. (26.7 mm Ht x 82.6 mm O.D.)
Mesh Material: SS 316
Mesh Size: 35x35
Opening: 0.017" (0.43mm)
Interior 0.7" Ht x 3.0" I.D. (17.8 mm Ht x 76.2 mm I.D.)
Exterior 1.05" Ht x 3.25" O.D. (26.7 mm Ht x 82.6 mm O.D.)
Mesh Material: SS 316
Mesh Size: 35x35
Opening: 0.017" (0.43mm)
Catalog # 8771C

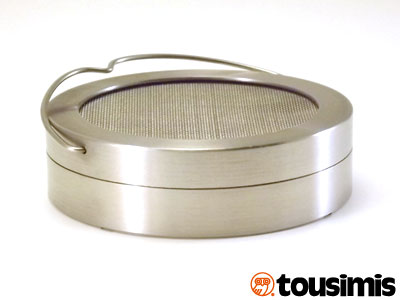

4" Large Capacity Holder
Material: SS316
Interior 0.7" Ht x 4.0" I.D. (17.8 mm Ht x 101.6 mm I.D.)
Exterior 1.05" Ht x 4.4" O.D. (26.7 mm Ht x 111.8 mm O.D.)
Mesh Material: SS 316
Mesh Size: 35x35
Opening: 0.017" (0.43mm)
Interior 0.7" Ht x 4.0" I.D. (17.8 mm Ht x 101.6 mm I.D.)
Exterior 1.05" Ht x 4.4" O.D. (26.7 mm Ht x 111.8 mm O.D.)
Mesh Material: SS 316
Mesh Size: 35x35
Opening: 0.017" (0.43mm)
Catalog # 8771D

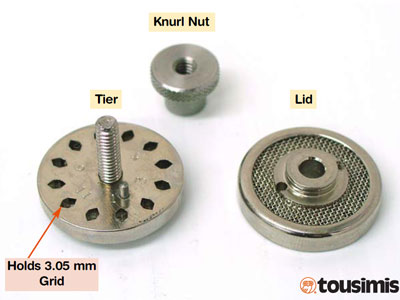

GRID HOLDER, Holds 12 grids
For use with any tousimis Samdri®.
The most advanced new design holds 12 x 3.05mm grids (may also be used to hold smaller sized wafers) with numbered slots for easy sample identification and processing in the SAMDRI®.
Mesh Type: SS316 40x40
Opening Size = 0.3mm
Approximate outer dimensions: height: 1" (25.4mm); diameter: 1" (25.4mm). New application! Stain your grids holding sections or process smaller wafer sizes.
Click here for Printable Description
The most advanced new design holds 12 x 3.05mm grids (may also be used to hold smaller sized wafers) with numbered slots for easy sample identification and processing in the SAMDRI®.
Mesh Type: SS316 40x40
Opening Size = 0.3mm
Approximate outer dimensions: height: 1" (25.4mm); diameter: 1" (25.4mm). New application! Stain your grids holding sections or process smaller wafer sizes.
Click here for Printable Description
Catalog # 8761

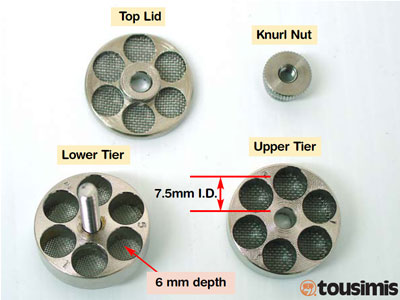

SAMPLE HOLDER, FOR 12 SAMPLES
For 12 samples, each compartment measures 7.5mm diameter x 6mm height.*
Each compartment has alternative numbers stamped on it for "EASY" sample identification
Mesh Type: SS316 40x40
Opening Size = 0.3mm
Approximate outer dimensions: height: 1" (25.4mm); diameter: 1" (25.4mm).
Click here for Printable Description
Each compartment has alternative numbers stamped on it for "EASY" sample identification
Mesh Type: SS316 40x40
Opening Size = 0.3mm
Approximate outer dimensions: height: 1" (25.4mm); diameter: 1" (25.4mm).
Click here for Printable Description
Catalog # 8762

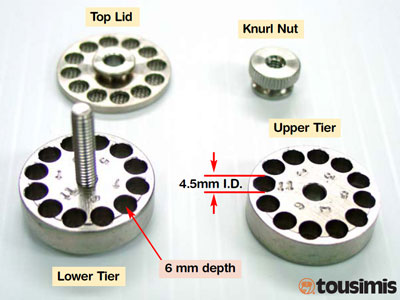

SAMPLE HOLDER, FOR 24 SAMPLES
Process up to 24 samples at a time, each compartment measures 4.5mm diameter x 6mm height.
Mesh Type: SS316 40x40
Opening Size = 0.3mm
Approximate outer dimensions: height: 1 1/8" (28.6mm); diameter: 1" (25.4mm).
(Limit 3 per customer)
Click here for Printable Description
Mesh Type: SS316 40x40
Opening Size = 0.3mm
Approximate outer dimensions: height: 1 1/8" (28.6mm); diameter: 1" (25.4mm).
(Limit 3 per customer)
Click here for Printable Description
Catalog # 8763

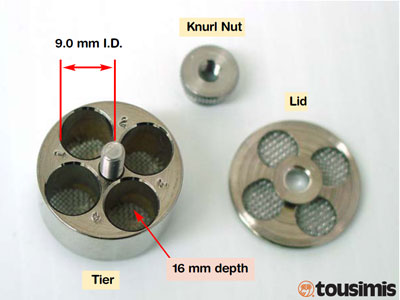

SAMPLE HOLDER, FOR 4 SAMPLES
Process up to 4 samples at a time, each compartment measures 9mm diameter x 16mm height*.
* Each compartment has alternative numbers stamped on it for "EASY" sample identification
Mesh Type: SS316 40x40
Opening Size = 0.3mm
Approximate outer dimensions: height: 1 1/8" (28.6mm); diameter: 1" (25.4mm).
Click here for Printable Description
* Each compartment has alternative numbers stamped on it for "EASY" sample identification
Mesh Type: SS316 40x40
Opening Size = 0.3mm
Approximate outer dimensions: height: 1 1/8" (28.6mm); diameter: 1" (25.4mm).
Click here for Printable Description
Catalog # 8764

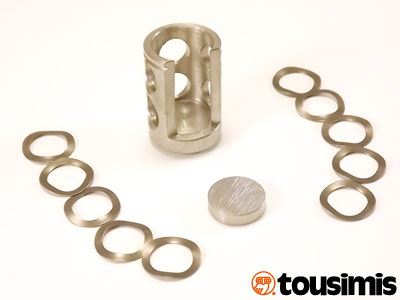

COVER SLIP HOLDER, for 9mm to 13mm Diameter Glass Cover Slips
Process up to 10 glass cover slips of 9 to 13mm diameter, fits into the tousimis® SAMDRI® Chamber.
Approximate outer dimensions: height: 1" (25.4mm); diameter: 5/8" (16mm).
Approximate outer dimensions: height: 1" (25.4mm); diameter: 5/8" (16mm).
Catalog # 8766
SPARE WASHERS FOR COVER SLIP HOLDER, for use with #8766
Used with the tousimis® cover slip holder (#8766) for critical point drying of samples. O.D.:12mm I.D.:9mm wavy washers for cover slip holders.
Catalog # 8766-01 (10/pkg)

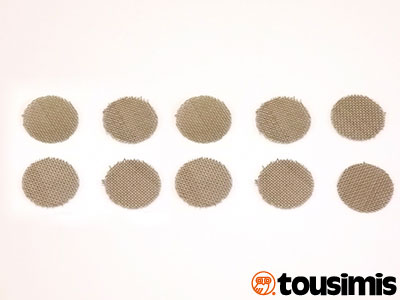

STAINLESS STEEL SCREENS FOR COVER SLIP HOLDER, for use with #8766
Stainless Steel Screens for 9 to 13mm diameter. Enables critical point drying of Millipore™ filters. Use with #8766
Catalog # 8766-02 (10/pkg)

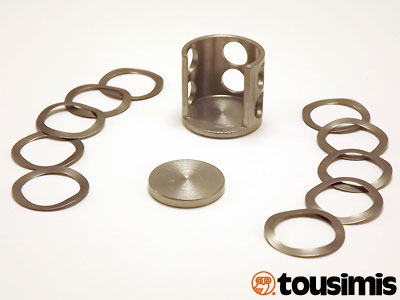

COVER SLIP HOLDER, for 16mm to 22mm Diameter Glass Cover Slips
Holds up to 10 glass cover slips of 16 to 22mm diameter, fits into the tousimis® SAMDRI® Chamber.
Approximate outer dimensions: height: 1" (25.4mm); diameter: 1" (25.4mm).
Approximate outer dimensions: height: 1" (25.4mm); diameter: 1" (25.4mm).
Catalog # 8767

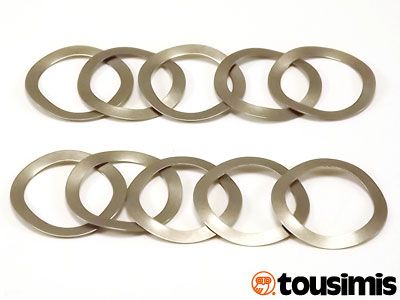

SPARE WASHERS FOR COVER SLIP HOLDER, for use with #8767
Used with the tousimis® glass-disc holder (#8767) for critical point drying of samples. O.D.:21mm I.D.: 17mm wavy washers for cover slip holders.
Catalog # 8767-01 (10/pkg)

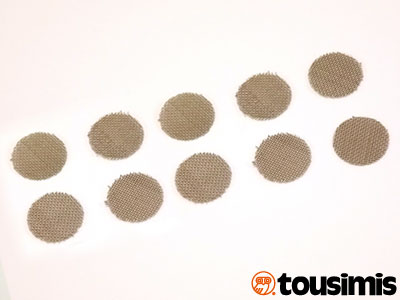

STAINLESS STEEL SCREENS FOR COVER SLIP HOLDER, for use with #8767
Stainless Steel Screens for 16mm to 22mm diameter. Enables critical point drying of Millipore™ filters. Use with #8767.
Catalog # 8767-02 (10/pkg)
