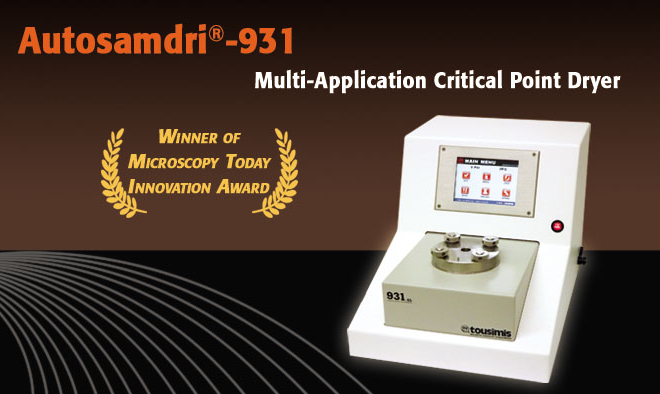

Autosamdri®-931 - Non-Cleanroom Versions

Applications
931 Series

CPD Multi-Applications

Application Images

Enteric Bacteria Univ. of MD School of Dentistry-Electron Microscopy Core Imaging Facility

Fruit fly eye coated with platinum University of Missouri - EM Core Facility

Nanotruss California Institute of Technology, Materials Science and Mechanics

Search

Cleanroom vs Non-Cleanroom

FEATURES
  • Bright LCD Touchscreen Control
  • Default "Automode" setting suitable for majority of sample types
  • Create and save custom Recipes exactly for your specific sample needs
  • Easy view placement of Micro Metering Valves with Vernier Handles
  • Slow Fill feature protects the most delicate samples
  • Internal 0.5µm particulate filtration protects valves and samples
  • LCO2 Tank trace Oil/Water/0.5µm In-line Delivery Filtration
  • External 0.5µm Post-Purge filter allows for simple maintenance
  • Fast adiabatic chamber cooling (Less than one minute for the 1.25" chamber)
  • Internal SOTER™ Condenser quietly separates waste alcohol and CO2
  • EZ top loading process chamber with LED illumination
  • Maintenance Free Non-Mechanical Vortex Swirl™ Purge Stirring
  • "Stasis Software" for drying GELS and other challenging sample types
  • Post Process Data Review
  • All components meet CE, UL and/or U.S. Military specifications
  • 2 year warranty on all parts and labor
  • Made in U.S.A.
SPECIFICATIONS
  • Cabinet: (W) 15.0" (38.0cm) x (H) 13.25" (33.5cm) x (D) 20" (50.8cm)
  • System Set-Up Area Required: (W) 24" (61cm) x (D) 22" (56cm)
  • Chamber Size (Available in three sizes):
    • 1.25" ID x 1.25" Depth (31.75mm ID x 31.75mm Depth) - 25 ml Volume
    • 2.50" ID x 1.25" Depth (63.50mm ID x 31.75mm Depth) - 100 ml Volume
    • 3.40" ID x 1.25" Depth (86.36mm ID x 31.75mm Depth) - 186 ml Volume
  • Pressure Gauge Range: 0- 2000 psi, Temperature Range - 30°C to 60°C
  • 120V or 220V Models Available
STANDARD ACCESSORIES
  • Flexible High-Pressure LCO2 Supply Hose, 5ft (1.5m)
    (Note: Other lengths available upon request up to 50ft (15m))
  • External LCO2 Filtration System (#8784) removes water/oil and particulates down to 0.5 µm conveniently pre-installed onto your LCO2 High Pressure Hose
  • Static Free Exhaust Tubing
  • Flow Meter supplied allows precise BLEED Exhaust Calibration
  • Chamber insert included for 2.50" chamber and 3.40" chamber to reduce the chamber size down to 1.25"
  • Spare chamber O-rings (2), LED chamber lamp (1), and 5A slo-blow fuses (2)
  • User Manual and Check-Out Data Sheet
  • Installation Tool Kit
  • Free lifetime technical support
OPTIONAL ACCESSORIES
For all Autosamdri®-931
  • 8760-40: 5 AMP FUSE for SAMDRI® and Autosamdri®
  • 8770-13: LED CHAMBER LAMP for SAMDRI® and Autosamdri® (120V/60Hz)
  • 8770-32: HIGH-PRESSURE HOSE, 5ft
  • 8770-33: HIGH-PRESSURE HOSE, 10ft
  • 8784: LCO2 Filter Assembly for Non-Cleanroom CPD
  • 8784A: LCO2 FILTER ELEMENT for #8784
  • 8784B: O-Ring for #8784 LCO2 Filter Assembly Seal
  • 8784-05: Gasket for LCO2 Tank Connect
  • 8770-83B: 0.5µm Stainless Steel Particulate Filter Element for LCO2 T-Filter or External Purge Line Filter
  • 8770-53: POWER CABLE
  • 8770-54: LCO2 TANK SCALE W/ REMOTE READOUT
  • 8770-94: Carboy, 1 gal capacity with 2 quick connect 1/4" hose barbs
  • 8770-95: Carboy, 2.5 gal capacity with 2 quick connect 1/4" hose barbs
For all Autosamdri®-931 with 1.25in Chamber
  • 8770-51: O-Ring for 1.25" Chamber I.D. for Autosamdri®-931 (Non-Cleanroom version)
  • 8770-45: Flow Meter - Use with any 1.25" dia. Samdri® Chamber (20 SCFH)
  • 8770-91: Acetone Package Kit for 1.25" Process Chamber
For all Autosamdri®-931 with 2.5in Chamber
  • 8770-51/S25: O-Ring for Autosamdri®-931 with 2.5" I.D. Chamber (Non-Cleanroom version)
  • 8770-46: Flow Meter - Use with any 2.5", 3.4" and 4.0" dia. Autosamdri® Chamber (60 SCFH)
  • 8770-91A: Acetone Package Kit for 2.5" Process Chamber
For all Autosamdri®-931 with 3.4in Chamber
CPD MULTI-APPLICATIONS

Chamber Size Options





3.40" Chamber

Cat.# 8787C

2.50" Chamber

Cat.# 8787B

1.25" Chamber

Cat.# 8787A

Autosamdri®-931 - 1.25" Chamber

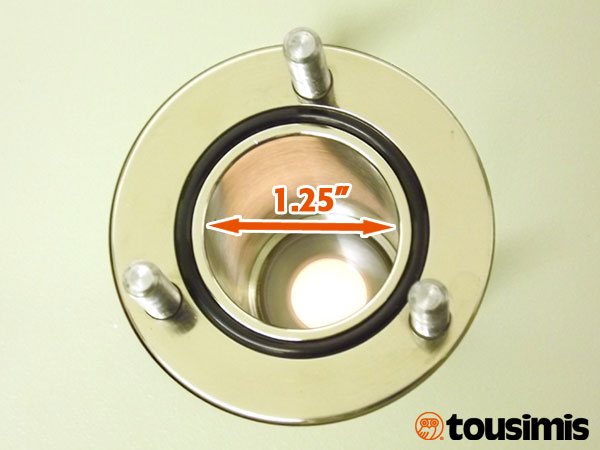

1.25" Chamber Size

Autosamdri®-931 - 1.25" Chamber version
No Sample Holder Loaded

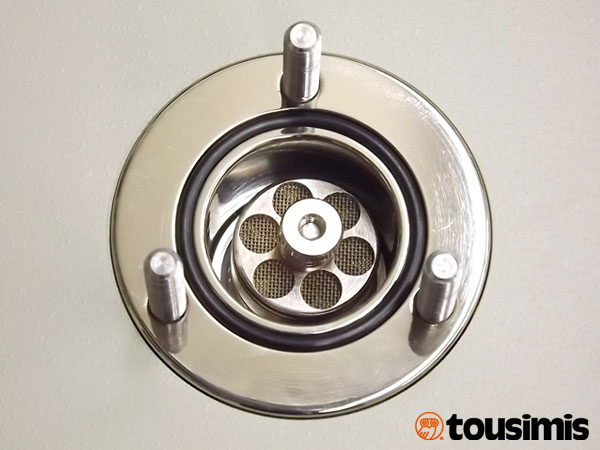

1.25" Chamber with a Sample Holder

Autosamdri®-931 - 1.25" Chamber with a tousimis® Sample Holder

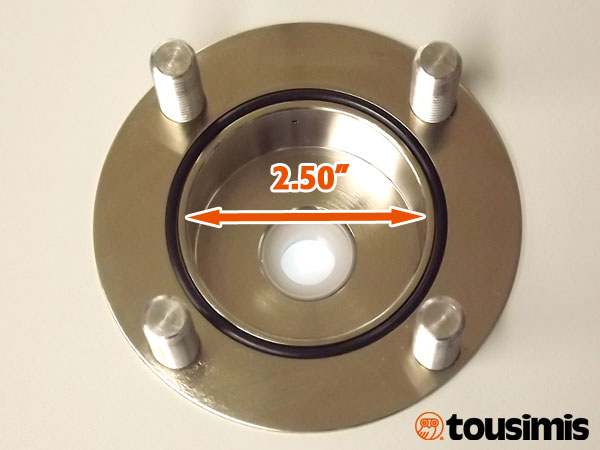

Autosamdri®-931 - 2.50" Chamber

2.50" Chamber Size

Autosamdri®-931 - 2.50" Chamber version
No Sample Holder Loaded

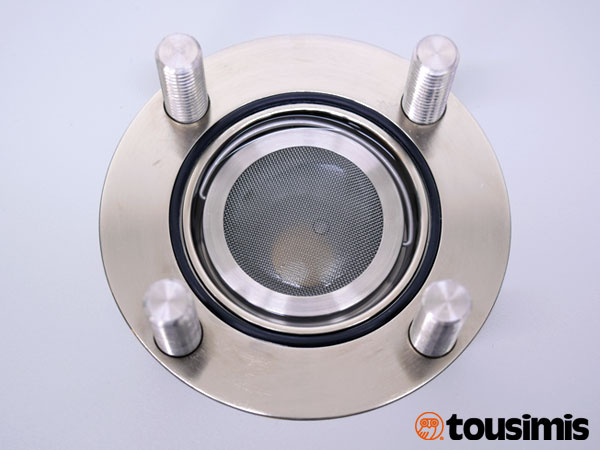

2.50" Chamber with a Large Capacity Holder

Autosamdri®-931 - 2.50" Chamber with a Large Capacity Holder

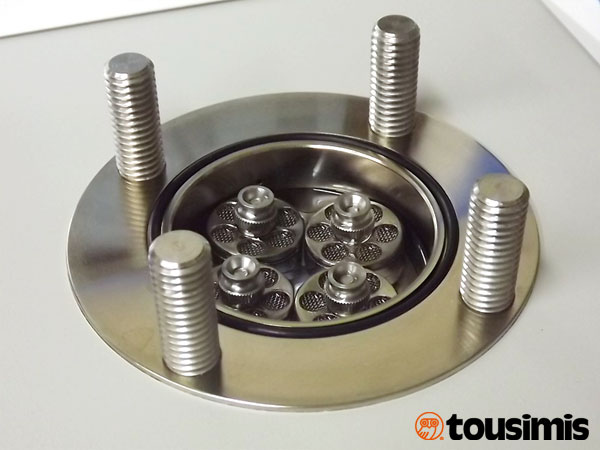

2.50" Chamber with 4 x Sample Holders

Autosamdri®-931 - 2.50" Chamber with 4 x tousimis® Sample Holders

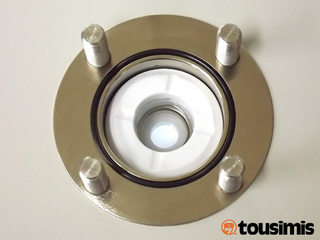

2.50" Chamber with a Chamber Insert

Autosamdri®-931 - 2.50" Chamber with a Chamber Insert installed

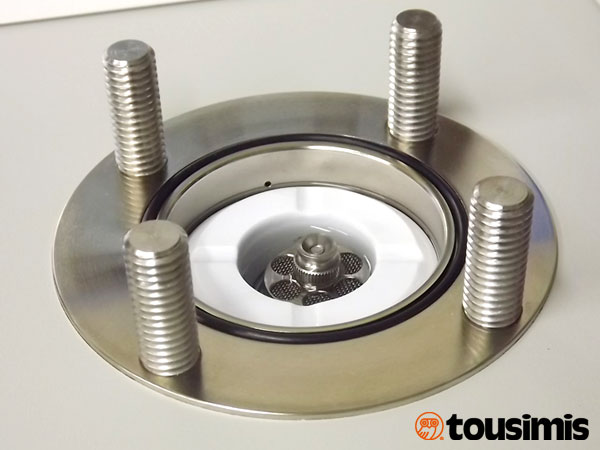

2.50" Chamber with a Chamber Insert and a Sample Holder

Autosamdri®-931 - 2.50" Chamber with a Chamber Insert and a tousimis® Sample Holder

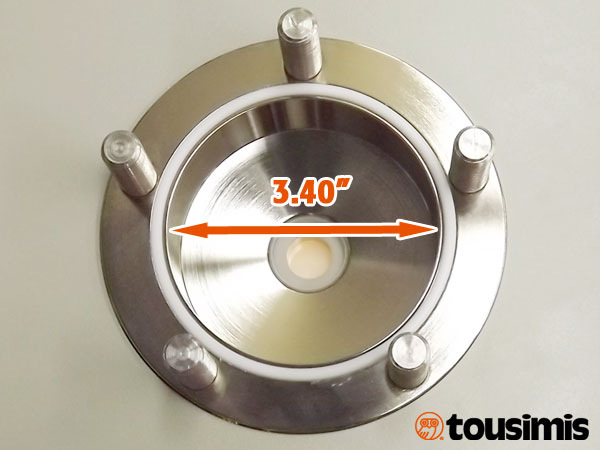

Autosamdri®-931 - 3.40" Chamber

3.40" Chamber Size

Autosamdri®-931 - 3.40" Chamber version
No Sample Holder Loaded

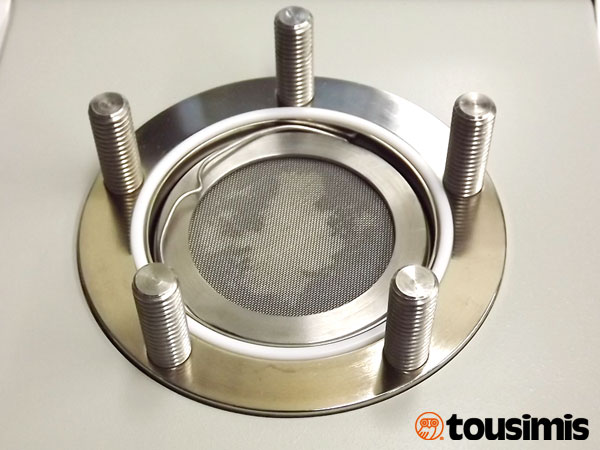

3.40" Chamber with a Large Capacity Holder

Autosamdri®-931 - 3.40" Chamber with a Large Capacity Holder

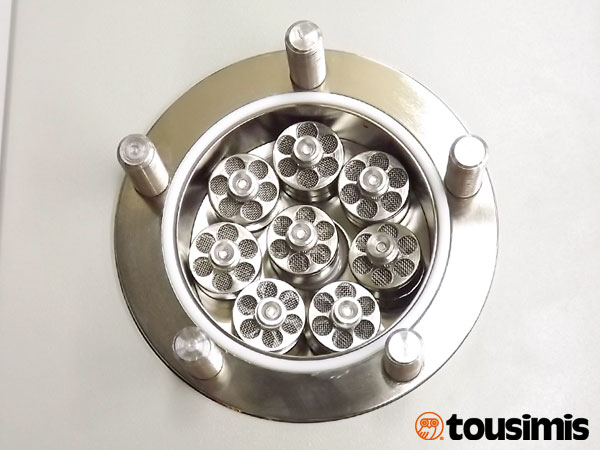

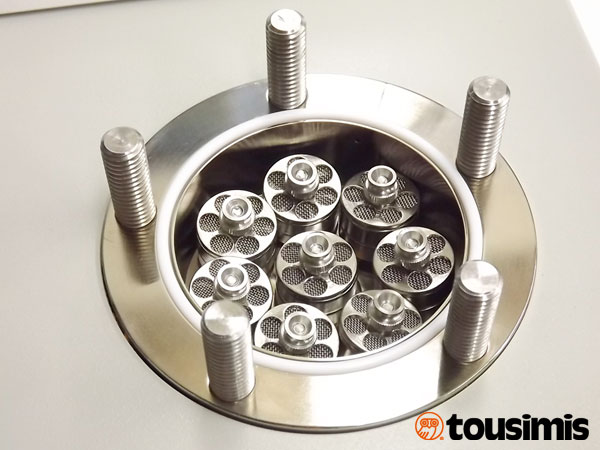

3.40" Chamber with 8 x Sample Holders

Autosamdri®-931 - 3.40" Chamber with 8 x tousimis® Sample Holders

3.40" Chamber with 8 x Sample Holders

Autosamdri®-931 - 3.40" Chamber with 8 x tousimis® Sample Holders

3.40" Chamber with a Chamber Insert

Autosamdri®-931 - 3.40" Chamber with a Chamber Insert installed

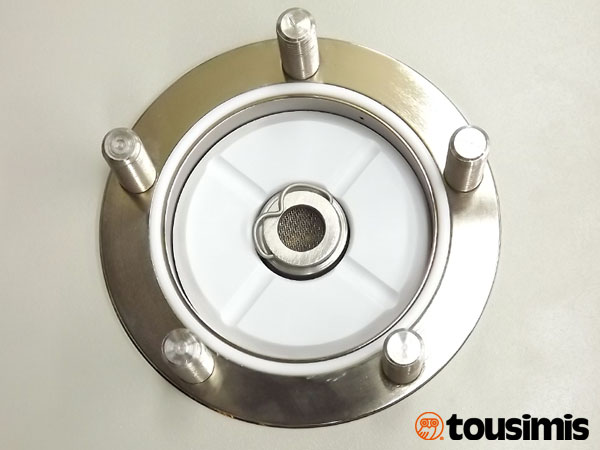

3.40" Chamber with a Chamber Insert and a Sample Holder

Autosamdri®-931 - 3.40" Chamber with a Chamber Insert and a tousimis® Sample Holder
